Abstract

Research Article

Stress evaluation of maxillary central incisor restored with different post materials: A finite element analysis

Samarth Kumar Agarwal*, Reena Mittal, Romil Singha, Sarah Hasan and Kanchan Chaukiyal

Published: 21 July, 2020 | Volume 4 - Issue 1 | Pages: 022-027

Introduction: With the availability of different post systems and various studies on the strength of teeth restored with posts, the controversy as to which post systems provide better stress distribution of post and longevity of tooth has not been resolved. The purpose of this study was to compare the stress distribution of three different post materials using finite element analysis.

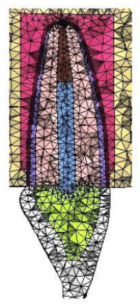

Materials and nethod: Three dimensional finite element models of central incisor, three posts with crown were constructed on computer with software. Posts of three different materials (Ni-Cr post, Glass fiber post, and Zirconia post)with zirconia crown were virtually generated and a force of 100 N was applied at an angle of 450 on the palatal surface of the crown. Von Mises stresses were evaluated on the cervical, middle and apical third of the root.

Results: The maximum stresses were seen on the cervical one-third in each post material indicating that this region is more prone to fracture in tooth restored with posts. Among the three materials tested, Ni-Cr post showed maximum stress generation followed by Zirconia post and glass fiber post. The maximum stresses generated by the posts were 11.4 MPa, 10.58 MPa and 4.11 MPa respectively.

Conclusion: The less rigid post material like glass fiber post can be used in an endodontically treated anterior teeth.

Read Full Article HTML DOI: 10.29328/journal.jcad.1001020 Cite this Article Read Full Article PDF

References



  1. Rosenstiel SF, Land MF, Fujimoto J. Restoration of Endodontically Treated Tooth. In: Contemporary fixed prosthodontics. 4th ed. St. Louis, Mo.: Mosby Elsevier. 2006; 336-378.
  2. Peters MCRB, Poort HW, Farah JW, Craig RG. Stress analysis of a tooth restored with a post and core. J Dent Res. 1983; 62: 760-763. PubMed: https://www.ncbi.nlm.nih.gov/pubmed/6343442
  3. Ho MH, Lee SY, Chen HH, Lee MC. Three-dimensional finite element analysis of the effects of posts on stress distribution in dentin. J Prosthet Dent. 1994; 72: 367-372. PubMed: https://pubmed.ncbi.nlm.nih.gov/7990041/
  4. Rubin C, Krishnamurthy N, Capilouto E, Yi H. Stress analysis of the human tooth using a three-dimensional finite element model. J Dent Res/ 1983; 62: 82-86. PubMed: https://pubmed.ncbi.nlm.nih.gov/6571871/
  5. Ko CC, Chu CS, Chung KH, Lee MC. Effects of posts on dentin stress distribution in pulpless teeth. J Prosthet Dent. 1992; 68: 421-427. PubMed: https://pubmed.ncbi.nlm.nih.gov/1432755/
  6. Joshi S, Mukherjee A, Kheur M, Mehta A. Mechanical performance of endodontically treated teeth. Finite elements in analysis and design. 2001; 37: 587-601.
  7. Okamoto K, Ino T, Iwase N, Shimizu E, Suzuki M, et al. Three dimensional finite element analysis of stress distribution in composite resin cores with fiber posts of varying diameters. Dent Mater J. 2008; 27: 49-55.
  8. Amarante MV, Pereira MVS, Darwish FAI, Camardo AF. Virtual analysis of stresses in human teeth restored with esthetic posts. Materials Research. 2008; 11: 459-463.
  9. Jang JH, Park SJ, Min KS, Lee BN, Chang HS, et al. Stress behavior of cemented fiber- reinforced composite and titanium posts in the upper central incisor according to the post length: Two – dimensional finite element analysis. J Den Sci. 2012; 7: 384-389.
  10. Cohen BI, Pagnillo MK, Condos S, Deutsch AS. Four different core materials measured for fracture strength in combination with five different designs of endodontic posts. J Prosthet Dent. 1996; 76: 487-495. PubMed: https://www.ncbi.nlm.nih.gov/pubmed/8933438
  11. Standlee JP, Caputo AA, Hanson EC. Retention of endodontic dowels: effects of cement, dowel length, diameter, and design. J Prosthet Dent. 1978; 39: 400-405. PubMed: https://pubmed.ncbi.nlm.nih.gov/347057/
  12. Asmussen E, Peutzfeldt A, Sahafi A. Finite element analysis of stresses in endodontically treated, dowel-restored teeth. J Prosthet Dent. 2005; 94: 321-329. PubMed: https://pubmed.ncbi.nlm.nih.gov/16198168
  13. Vasconcellos WA, Cimini CA Jr., Albuquerque RC. Effect of post geometry and material on the stress distribution of restored upper central incisors using 3D finite element models. Stress distribution on incisors with posts. J of Ind Prosthodont Society. 2006; 6: 139-144.
  14. De Andrade GS, Tribst JPM, Dal Piva AMD, Bottino MA, Borges ALS, et al. A study on stress distribution to cement layer and root dentin for post and cores made of CAD/CAM materials with different elasticity modulus in the absence of ferrule. J Clin Exp Dent. 2019; 11: 1-8. PubMed: https://www.ncbi.nlm.nih.gov/pmc/articles/PMC6343998/
  15. Dejak B, Młotkowski A. Finite element analysis of strength and adhesion of cast posts compared to glass fiber-reinforced composite resin posts in anterior teeth. J Prosthet Dent. 2011; 105: 115-1126. PubMed: https://www.ncbi.nlm.nih.gov/pubmed/21262409
  16. de Castro Albuquerque R, Polleto LT, Fontana RH, Cimini CA. Stress analysis of an upper central incisor restored with different posts. J Oral Rehabil. 2003; 30: 936-943. PubMed: https://pubmed.ncbi.nlm.nih.gov/12950976
  17. Preethi G, Kala M. Clinical evaluation of carbon fiber reinforced carbon endodontic post, glass fiber reinforced post with cast post and core: A one-year comparative clinical study. J Conserv Dent. 2008; 11: 162-167. PubMed: https://www.ncbi.nlm.nih.gov/pmc/articles/PMC2843538/
  18. Krejci I, Mueller E, Lutz F. Effects of thermocycling and occlusal force on adhesive composite crowns. Journal of Dental Research. 1994; 73: 1228–1232. PubMed: https://www.ncbi.nlm.nih.gov/pubmed/8046113
  19. Christel P, Meunier A, Heller M, Torre JP, Peille CN. Mechanical properties and short-term in vivo evaluation of yttrium-oxide-partially-stabilized zirconia. J Biomed Mater Res. 1989; 23: 45-61. PubMed: https://pubmed.ncbi.nlm.nih.gov/2708404/
  20. Toth JM, Wang M, Estes BT, Scifert JL, Seim III HB, et al. Polyetheretherketone as a biomaterial for spinal applications. Biomaterials. 2006; 27: 324-334. PubMed: https://pubmed.ncbi.nlm.nih.gov/16115677/
  21. Toparli M. Stress analysis in a post-restored tooth utilizing the finite element method. Journal of Oral Rehab. 2003; 30: 470-476.
  22. Trivedi S. Finite element analysis: a boon to dentistry. J Oral Biol Craniofac Res. 2014; 4: 200-203. PubMed: https://www.ncbi.nlm.nih.gov/pmc/articles/PMC4306993/
  23. Li L, Wang ZY, Bai ZC, Mao Y, Gao B, et al. Three-dimensional finite element analysis of weakened roots restored with different cements in combination with titanium alloy posts. Chin Med J. 2006; 119: 305-311. PubMed: https://pubmed.ncbi.nlm.nih.gov/165370

Figures:

Figure 1

Figure 1

Figure 1

Figure 2

Figure 1

Figure 3

Figure 1

Figure 4

Figure 1

Figure 5

Figure 1

Figure 6

Figure 1

Figure 7

Figure 1

Figure 8
